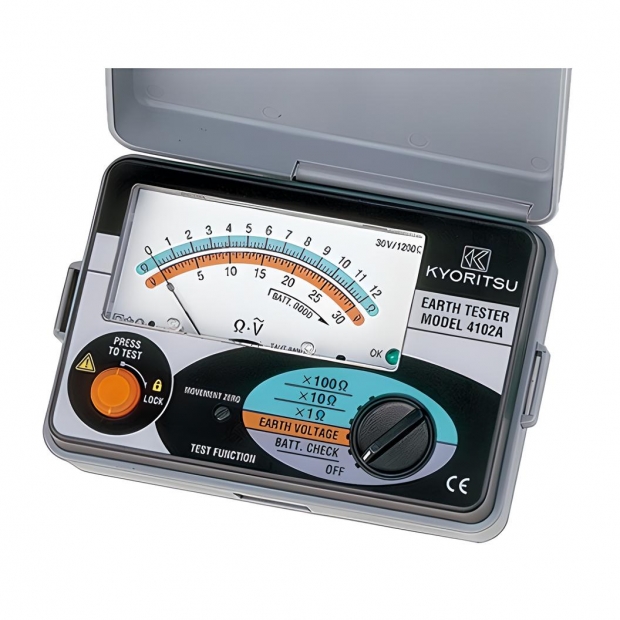

Specification
| Earth resistance measurement |
× 1ΩRange | × 10Ω | × 100Ω | |
| Measuring range | 0 to 12Ω | 0 to 120Ω | 0 to 1200Ω | |
| Accuracy | ±3% of full scale | |||
| Earth voltage measurement | ||||
| Measuring range | 0 to 30 V AC (50/60Hz) | |||
| Accuracy | ±3% of full scale | |||
| Overload protection | Earth resistance : 276V AC/DC (10 seconds) Earth voltage : 276V AC/DC (10 seconds) |
|||
| Applicable standards | IEC 61010-1 CAT Ⅲ300 V Pollution degree 2 IEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54) |
|||
| Power source | R6(AA)(1.5V) × 6 | |||
| Dimension | 105(L) × 158(W) × 70(D) mm (including case lid) | |||
| Weight | Approx. 600g (including batteries and case lid) | |||
| Accessories | 7095A (Earth resistance test leads (Red 20m, Yellow 10m, Green 5m/1set)) 7127B (Simplified measurement probe) 8032 (Auxiliary earth spikes[2 spikes/1set]) 9121 (shoulder strap) 9084 (Carrying case) R6(AA) × 6, Instruction manual |
|||
| Optional accessories | 7245A (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9164 (Carrying case [Hard]) |
|||
