Specification
| Insulation Resistance | |
| DC Test Voltage | 5000/10000V |
| Measuring ranges (automatic change) |
5/200GΩ (Auto-ranging) (5000V) 10/400GΩ (Auto-ranging) (10000V) |
| First effective measuring range | 0.2 to 100GΩ (5000V) 0.4 to 200GΩ (10000V) |
| Accuracy | ± 5% rdg |
| Other ranges accuracy | ±10% rdg or 0.5% of scale length |
| General | |
| Power source | R6 (AA) (1.5V) × 8 |
| Dimension | 200 (L) × 140 (W) × 80 (D) mm |
| Weight | Approx. 1kg |

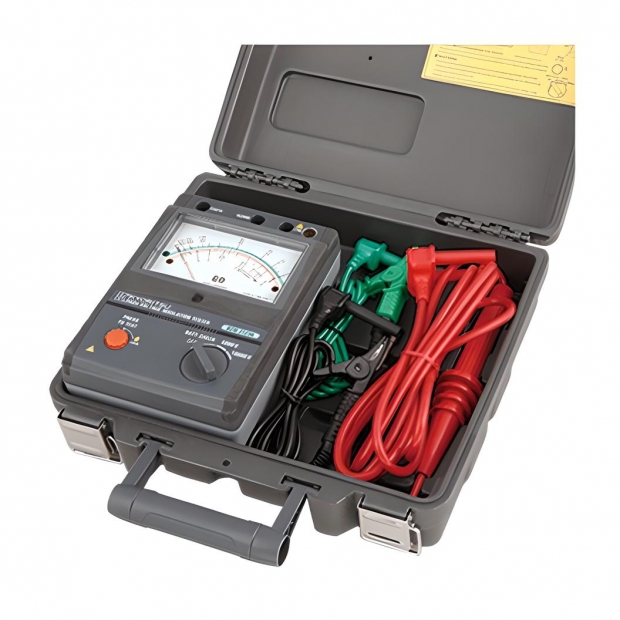

| Accessories | 7165A (Line probe) 7224A (Earth cord) 7225A (Guard code) 8019 (Hook type prod) 9158 (Hard case) R6 (AA) × 8 Instruction manual |
| Optional accessories | 7168A(Line probe with aligator clip) 8324 (Adapter for recorder) 7253 (Longer Line probe with alligator clip) |
