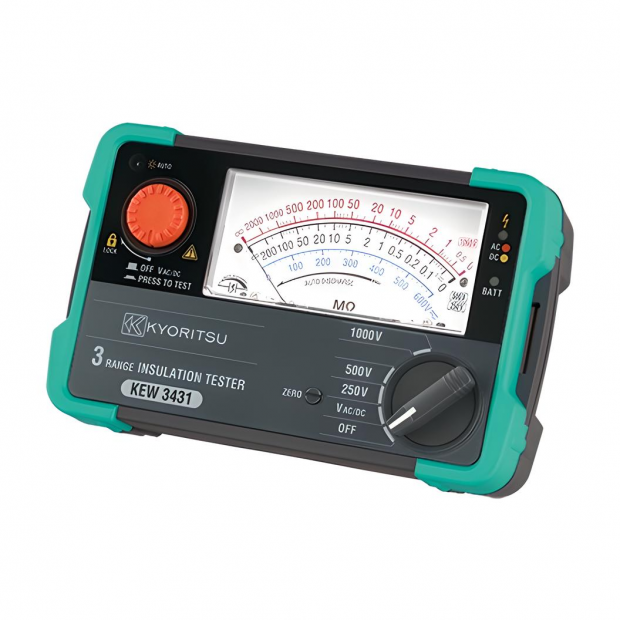

Specification
| Insulation resistance | ||||
| Test voltage | 250V | 500V | 1000V | |
| Max. effective scale value | 200MΩ | 2000MΩ | ||
| Mid-scale value | 5MΩ | 50MΩ | ||
| First effective measuring range | 0.1 to 100MΩ | 1 to 1000MΩ | ||
| Accuracy | ±5% of indicated value | |||
| Second effective measuring range | Measuring ranges other than above, 0 and ∞ | |||
| Accuracy | ±10% of indicated value | |||
| LED insulation state indicator indicating result by red / green color | 0.25MΩ | 0.5MΩ | 1MΩ | |
| Voltage measurement | ||||
| Voltage range | AC 600V [45 to 65Hz] DC 600V |
|||
| Accuracy | ±5% of full scale value | |||
| Applicable standards | IEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2 IEC 61010-031, IEC 61010-2-034 |
|||
| Power source | LR6/R6(AA)(1.5V) × 4 | |||
| Dimension / Weight | 97(L) × 156(W) × 46(D)mm / Approx. 430g | |||
| Included Accessories | 7260 (Test lead with remote control switch) 7261A (Test lead with alligator clip) 8017A (Extension prod long) 9121 (Shoulder strap) 9173 (Carrying case) LR6 (AA) × 4, Instruction manual |
|||
| Optional accessories | 9186A (Carrying case) 9187 (Cord case) 7243A (L-shaped probe) 8016 (Hook type prod) |
|||
