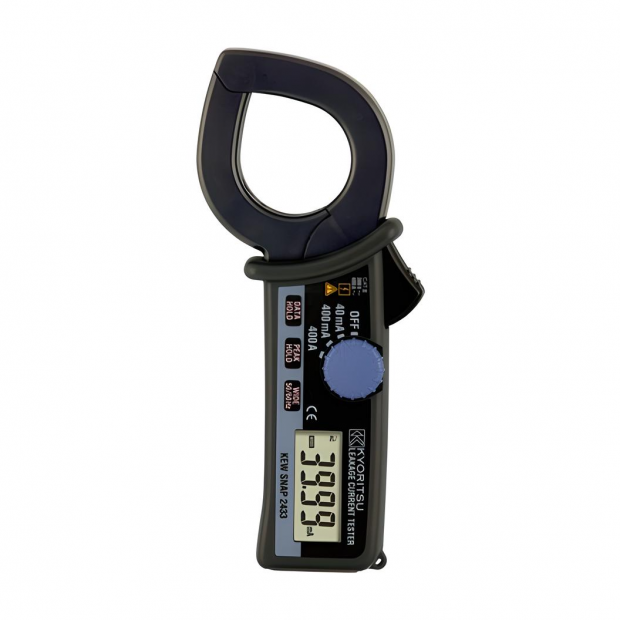

Specification
| AC A (50/60Hz) | 40/400mA/400A ±1%rdg±5dgt (40/400mA) ±1%rdg±5dgt (0 to 350A) ±2%rdg (350.1 to 399.9A) |
| AC A (WIDE) | 40/400mA/400A ±2.5%rdg±10dgt [20Hz to 1kHz] (40/400mA) ±2.5%rdg±10dgt [40Hz to 1kHz] (0 to 350A) ±5%rdg [40Hz to 1kHz] (350.1 to 399.9A) |
| Maximum circuit voltage | 600V AC/DC (between line/neutral) 300V AC/DC (against earth) |
| Conductor size | φ40mm max. |
| Frequency response | 20Hz to 1kHz [40Hz to 1kHz:400A] |
| Effect of External Stray Magnetic Field | Approx. 10mA AC in proximity to a 15mm conductor carrying 100A AC |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-032 |
| Response Time | Approx. 2 seconds |
| Power source | R03 (DC1.5V) × 2 |
| Dimension | 185(L) × 81(W) × 40(D)mm |
| Weight | Approx. 270g (including battery) |
| Accessories | 9097 (Carrying Case) R03 (1.5V) × 2 Instruction Manual |
