產品介紹

鉗形表

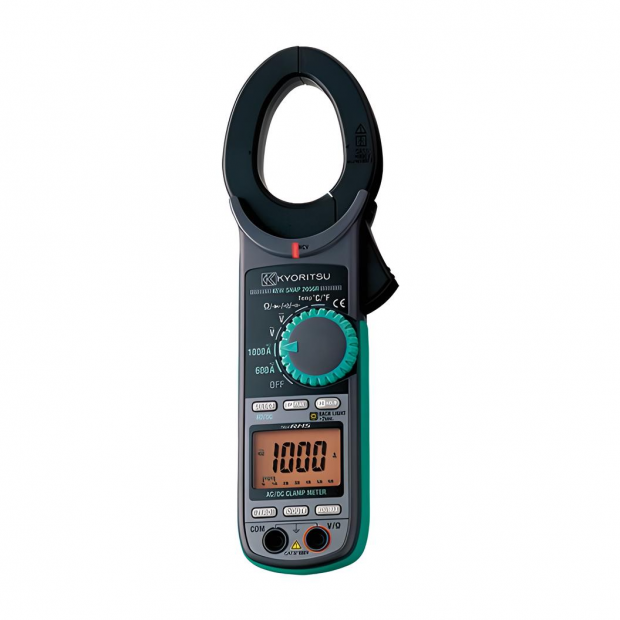

KEW 2056R真有效值交/直流鉗形表

KEW 2056R真有效值交/直流鉗形表

- 非常適用於電力配電公司、公用事業與維護領域
- 配備紅色LED非接觸電壓偵測功能，可對交流電壓存在發出警示
- 雙重成型設計，握感更舒適、符合人體工學
- 6039計數顯示搭配棒形圖，視覺清晰易於判讀
- 最小解析度為0.1A，可進行細微電流量測

/

詳細介紹

Specification

AC A	0 to 600.0/1000A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 to 500Hz)
DC A	0 to 600.0/1000A ±1.5%rdg±5dgt
AC V	6/60/600V(Auto-ranging) ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 to 400Hz)
DC V	600mV/6/60/600V(Auto-ranging) ±1.0%rdg±3dgt
Ω	600Ω/6/60/600kΩ/6/60MΩ (Auto-ranging) ±1%rdg±5dgt (600 to 6M) ±5%rdg±8dgt (60M)
Continuity buzzer	Buzzer Sounds at 100Ω
Capacitance test	400nF/4/40μF(Auto-ranging)
Temperature	-50 to +300ºC (With the use of Temperature probe 8216)
Frequency	10/100Hz/1/10kHz(Auto-ranging)
DUTY	0.1 to 99.9%
Conductor size	Ø40mm
Safety Standard	IEC 61010-1 CAT IV 600V, IEC 61010-031 IEC 61010-2-032, IEC 61326
Power source	R03 (1.5V) (AAA) × 2
Dimension	254(L) × 82(W) × 36(D)mm
Weight	Approx. 310g
Accessories	7066A (Test leads) 9094 (Carrying case) Instruction Manual
Optional Accessories	8216 (Temperature probe)
